התהפכות מבנה מגורים - סין

7 פוסטים / 0 חדשים
פרסום אחרון
מערכת האתר
התמונה של מערכת האתר
 IT'S A 12 STORYBUILDING IN

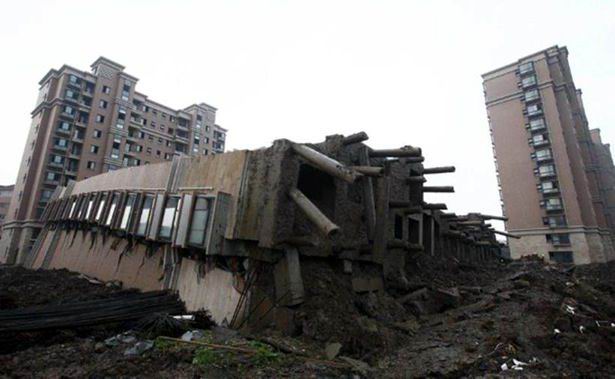

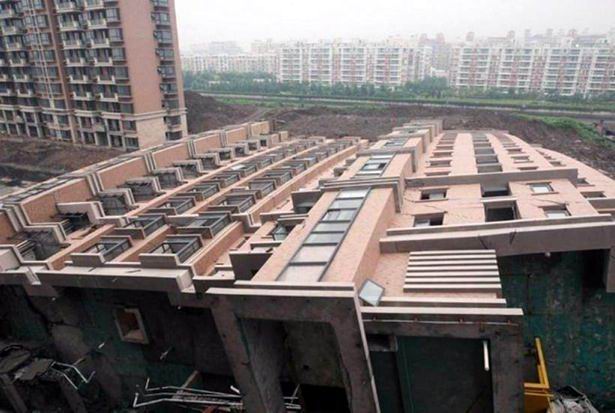

 IT'S A 12 STORY BUILDING IN CHINAoN> LYING ON THE GROUND.





(1) An underground garage was being dug on


      the south side, to a depth of 4.6 metersoNVERTER>.



(2) The excavated dirt was being piled up on


      the north side, to a height of 10 metersoNVERTER>.



(3) The building experienced uneven lateral


      pressure from south and north.



(4) This resulted in a lateral pressure of 3,000


      tonnes, which was greater than what the


      pilings could tolerate. Thus the building


      toppled over in the southerly direction.

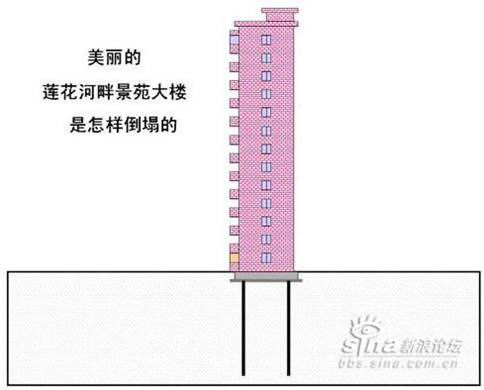

*First, the apartment building was constructed.*



Then the plan called for an underground garage to be dug out. The excavated soil


was piled up on the other side of the


building.



*Heavy rains resulted in water seeping


into the ground.*

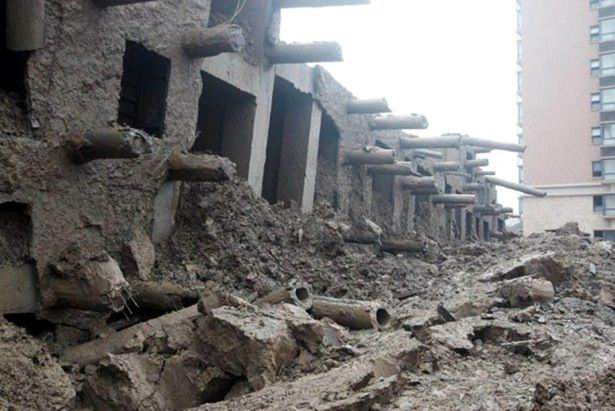

The building began to tilt. Then it began


to shift and the *_hollow_* concrete


pilings were snapped due to the uneven lateral pressures



And thus was born the eighth wonder of the world.



If the buildings were closer together it would have resulted in a domino effect.

















CivilEng2010-12-15 18:19:51
מערכת האתר
התמונה של מערכת האתר
אווכואב

אוו


כואב

tal83
התמונה של tal83
ווואהו... מדהים .. !נראה לי

ווואהו... מדהים .. !


נראה לי שהמהנדס כבר אינו בן החיים..  בסין זה עדיף מאשר להירקב בכלא ...

פנחס
התמונה של פנחס
מה זה הכלונסאות החלולים ?

מה זה הכלונסאות החלולים ?

erezh
התמונה של erezh
[QUOTE=פנחס]מה זה הכלונסאות

פנחס wrote:
מה זה הכלונסאות החלולים ?



????

מערכת האתר
התמונה של מערכת האתר
שיגומי בטון, מחדירים אותם עם

שיגומי בטון, מחדירים אותם עם פטיש.


CivilEng2012-07-10 21:08:23
